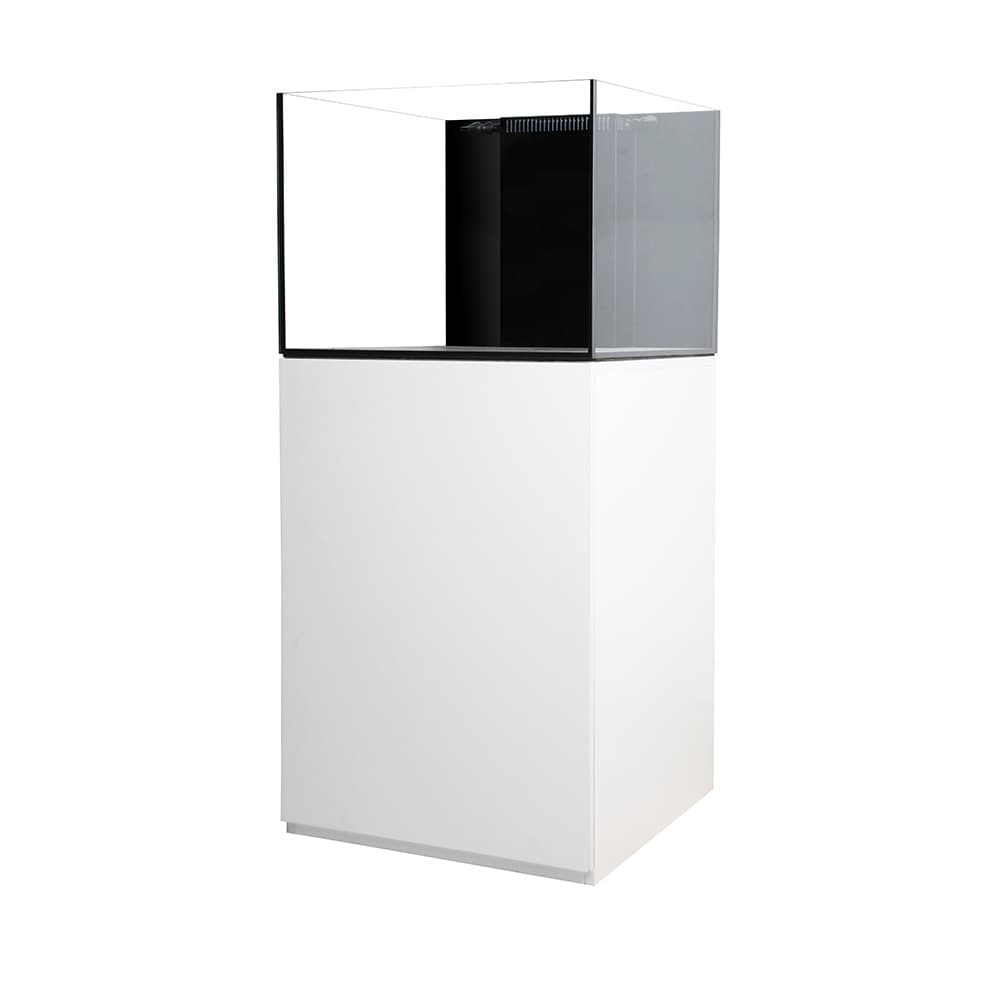

WaterBox - Reef 70.2 Aquarium Set

The WaterBox Reef 70.2 Aquarium Platinum series are constructed of Starphire Ultra-Clear Beveled Glass on all 5 sides and boasts a truly beautiful rimless design that sits on a pre-seated self-leveling foam mat.

Rimless 10-19mm Starphire Ultra-Clear Beveled Glass
Low iron ultra-clear glass with the highest quality silicone and crisp edges.

The water etched glass overflow box
Our unique glass overflow box provides superior surface skimming and allows the owner to keep their Waterbox completely clean of algae.

Rubber Mat Under Tank
Each Platinum Reef comes with a pre-seated Self-leveling rubber mat under the glass tank

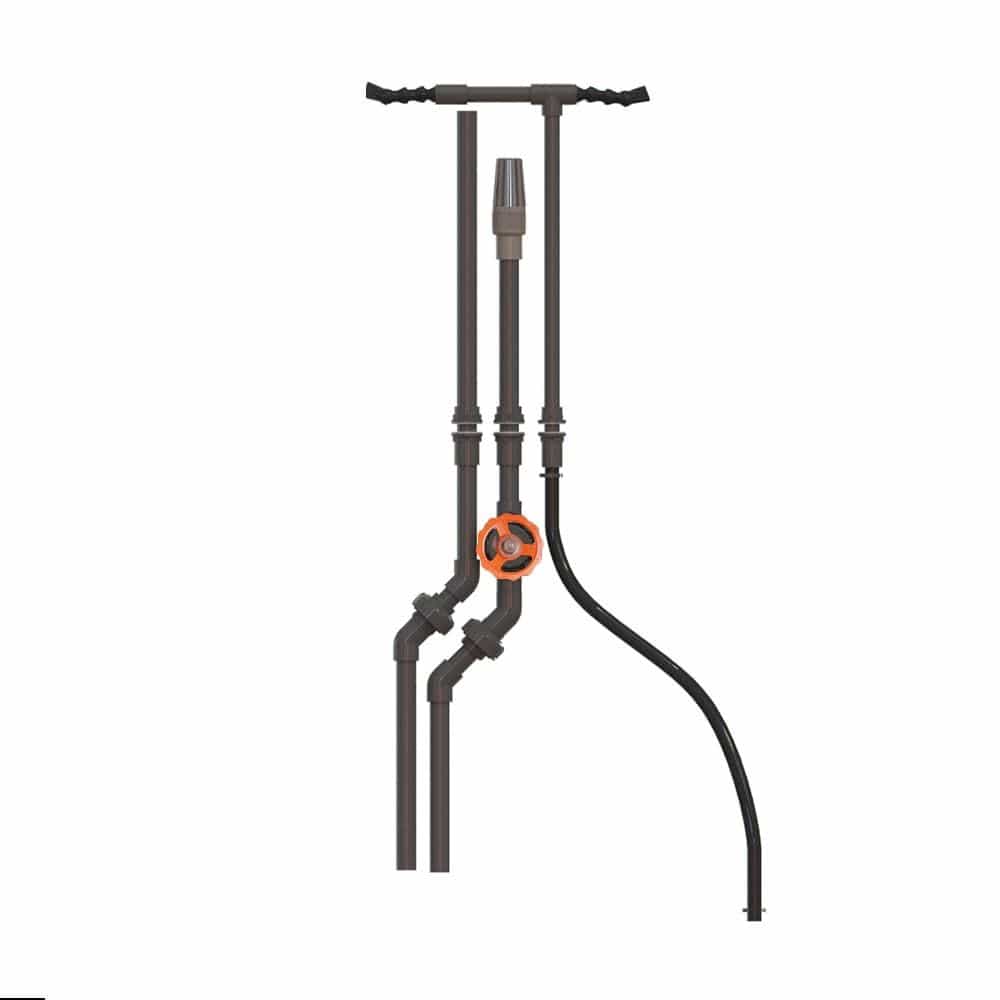

Platinum Reef Filtration
Designed a prefabricated proprietary plumbing kit that provides easy installation without any gluing required.

Dual adjustable overflow returns
Precision gate valve
Safety drain
Whisper quiet overflow design
No gluing required
Flexible return pipe
Quick disconnect unions
Professional Sump system with Auto Top off Reservoir - Each platinum series includes a glass sump with ATO reservoir that can be converted to a refugium.
Multi-level filter sock chamber -Dual micron socks reduce noise, prevents clogging, and reduces chances of overflowing.
Standard Filter Socks - The Waterbox Platinum Series each include 2 x 4 Inch filter socks to keep water clarity pristine.

Platinum Reef Cabinets
Made by world-renown furniture manufacturer, the Platinum Series cabinets are heavy-duty UV coated plywood. Includes stainless hinges, push open doors, and leveling feet. Our 4 foot and larger models include a separate section for equipment storage.

Stainless Hinges

High quality adjustable hinges provide rust-free access into your cabinet.

Push Open Doors
European doors that are flush with the front glass aquarium panel provide ease of access into the cabinet.

Leveling Feet
Adjustable leveling feet are included with each cabinet to ensure tank is level during installation.

Technical Specification

		Reef 70.2
Main Features	Starphire Ultra-Clear Glass	✓
	Glass Thickness(mm)	12mm(1/2″)
	Glass Overflow System	✓
	Built in surface skimmer	✓
	Integrated Evaporation (ATO) Reservior	✓

System Volumes	Display Water Volume (Gal)	47.2Gal(178L)
	Sump Water Volume (Gal)	22Gal(83L)
	Total System Volume (Gal)	69.1Gal(262L)
	ATO Reservior Volume (Gal)	3.6Gal(14L)

Display Dimensions	Tank Length (IN)	24″(60cm)
	Tank Width (IN)	24″(60cm)
	Tank Height (IN)	22″(55cm)
	Total Height with Cabinet	58″(145cm)

Sump Dimensions	Sump Length (IN)	21″(52cm)
	Sump Width (IN)	18″(45cm)
	Sump Height (IN)	15″(38cm)
	Sump Glass Thickness	6mm(1/4″)

Technical Details	Water Height in Sump	9″ (23cm)
	Skimmer Chamber	9.48″ x 8.50″ 24cm x 21cm
	Pump Chamber	8.26″ x 8.50″ 21cm x 22cm
	Recommended Flow Rate(GPH) Pump not included	700gph(2700L)

Special Features	Removable Filter Socks Included	✓
	Gate Valve Overflow Adjustment	✓
	Water etched glass overflow	✓
	Cabinets by World Renown cabinet maker	✓
	Cabinet Includes Leveling Hardware	✓
	Prefabricated Plumbing Kit Included	✓

Reef 70.2 Aquarium Set (60L x 60W x 145H cm) - WaterBox
