Waterbox REEF LX 230.5 – The Ultimate Luxury Large-Format Reef

The Waterbox REEF LX 230.5 represents the pinnacle of the Waterbox lineup, designed for the hobbyist who demands massive volume and uncompromising depth. With dimensions of 1500 x 750 x 600 mm, the "LX" (Luxury) designation refers to its expanded 75 cm (30") width. This extra-wide footprint provides an incredible canvas for complex rockwork and deep-perspective aquascaping that standard 60 cm tanks cannot achieve. Built with Starphire Ultra-Clear™ glass and a reinforced internal overflow, the 230.5 is a true "super-tank" capable of housing large tangs, majestic angels, and expansive coral colonies.

Luxury Engineering & Massive Water Volume

The REEF LX series is built with thicker glass and enhanced structural components to safely manage the significant weight and pressure of a high-volume system.

Ultra-Wide 75cm Depth: The 75 cm width allows for "island" aquascapes with plenty of open swimming space around the rockwork, significantly improving water circulation and territory management for fish.
19mm Starphire Ultra-Clear™ Glass: Utilizes some of the thickest low-iron glass in the industry for the front and side panels, providing incredible clarity and safety for its 719-liter system capacity.
Dual-Return Overflow: Features a high-capacity overflow box with dual return nozzles, allowing for more balanced flow distribution across the 150 cm length of the tank.

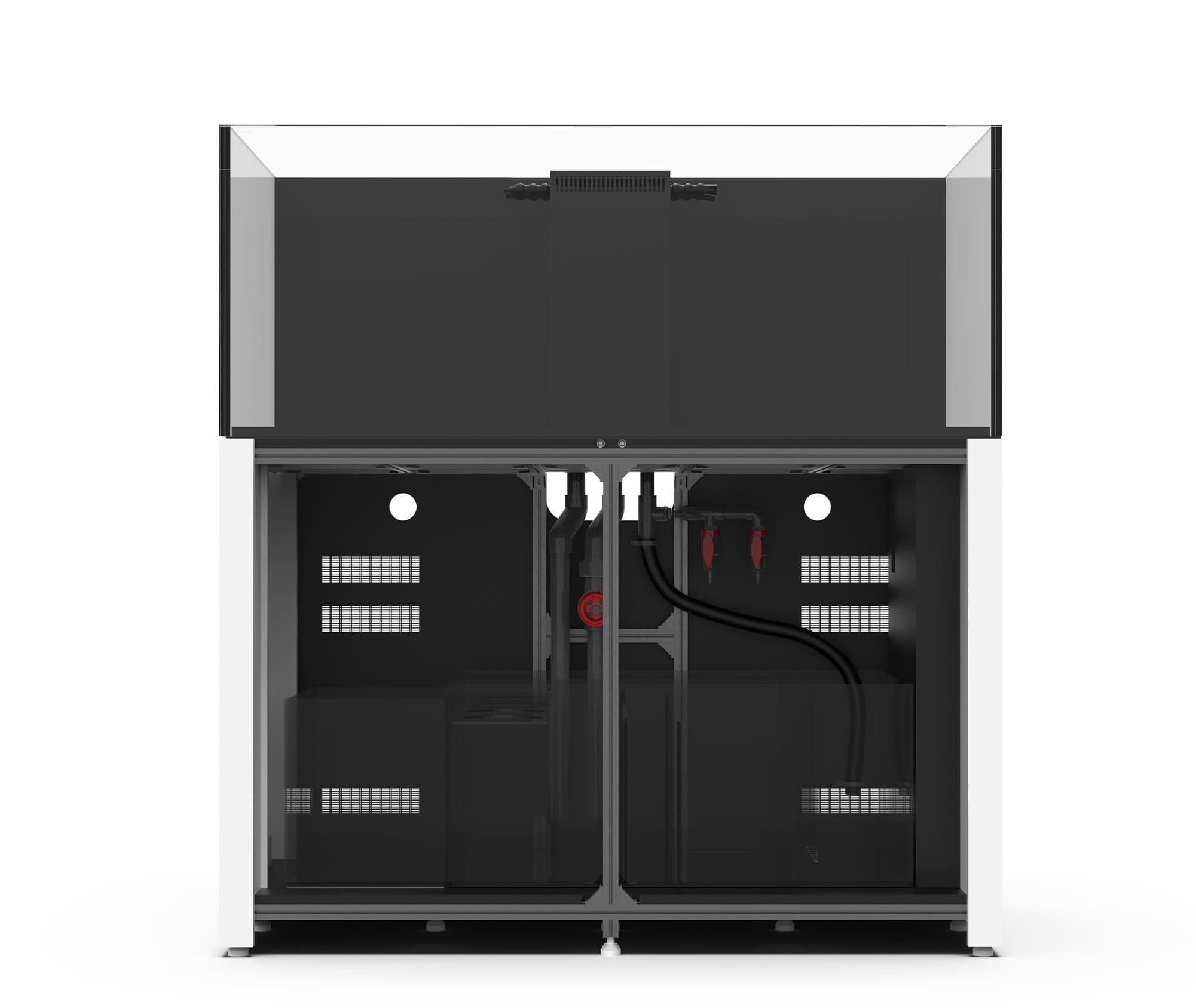

Integrated Sump & Refugium: The glass sump includes adjustable baffles, dual filter sock compartments, and a massive biological filtration area designed for high-performance protein skimmers.
Aluminum Framed Cabinet: Unlike smaller models, the LX series often utilizes a specialized aluminum-reinforced cabinet structure to ensure zero warping or bowing under the extreme weight of the system.

Specifications Table

Feature	Details
Aquarium Dimensions	1500 x 750 x 600 mm (59.1" x 29.5" x 23.6")
Total System Volume	874 Liters (230.9 Gallons)
Display Water Volume	647 Liters (171 Gallons)
Glass Thickness	19 mm (3/4")
Cabinet Height	900 mm (35.4")
Sump Volume	227 Liters (60 Gallons)

FAQ Section: Common Questions

What makes the LX series different from the standard Reef series?

The LX (Luxury) series is significantly wider (75 cm vs 60 cm) and uses thicker 19 mm glass. This depth provides 25% more floor space for aquascaping and allows for a much more realistic "deep reef" look.
Is the plumbing included with the LX 230.5?

Yes. It includes a complete, professional-grade plumbing kit with a precision gate valve for the main drain, emergency drains, and dual-return lines for a silent and secure setup.
How many people are needed to move this tank?

Due to the 19 mm glass, the empty aquarium alone weighs over 200 kg (440 lbs). It is highly recommended to use professional glass suction cups and at least 4 to 6 people for safe positioning.
Does it come with an ATO (Auto Top Off) reservoir?

Yes, the LX sump system includes an integrated glass ATO reservoir to help maintain stable salinity levels by automatically replenishing evaporated water.

Related Products

Waterbox Mesh Lid 1575: Specifically designed for the wider 75 cm LX footprint to prevent livestock from jumping.
Ecotech Marine MP60mQD: For a tank of this volume and width, MP60s are recommended to ensure proper water movement through the deep rockwork.
Sicce Syncra SDC 9.0: A powerful, controllable return pump is essential to handle the turnover required for a 800+ liter system.
